GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications

Model Number : HX-SW5

Place of Origin : Guangdong, China

Brand Name : HXCOWO

Certification : RoHS

MOQ : 50

Fiber Core Number : 2-288 Cores

Fiber Type : G652D/G657A1/G657A2

Diameter Range : 13.9-20.2 mm

Weight Range : 202-333 kg/km

Allowable Tensile Force : 1000/3000 N

Allowable Pressure : 1000/3000 N/100mm

Operating Temperature : -40℃ to +70℃

Laying Method : Direct burial

Jacket Material : PVC LSZH LSOH PE HDPE

Sheath Material : PE/PVC/LSZH/PC

Number of Conductors : ≥ 10

Cable Type : Outdoor Armored

Tensile Strength : 1000-3000N

Fiber Count : 2-288 Cores

Package Type : Wooden Drum

Contact Now

TECHNICAL PARAMETERS
Fiber Core Number
Diameter (mm)
Weight (kg/km)
2-36
13.9
202
38-72
15.1
241
74-96
17.1
290
98-120
18.6
333
122-144
20.2
281
Allowable Tensile Force
Long Term/Short Term
(N)
Allowable Pressure
Long Term/Short Term
(N/100mm)
Allowable Pressure
Long Term/Short Term
(N/100mm)
1000/3000
1000/3000
1000/3000

Scope of application
Suitable for long-distance communication and inter-office communication

Fiber type

G652D
Laying method
Direct burial
Operating temperature
40℃-70℃
PRODUCT DESCRIPTION
GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications

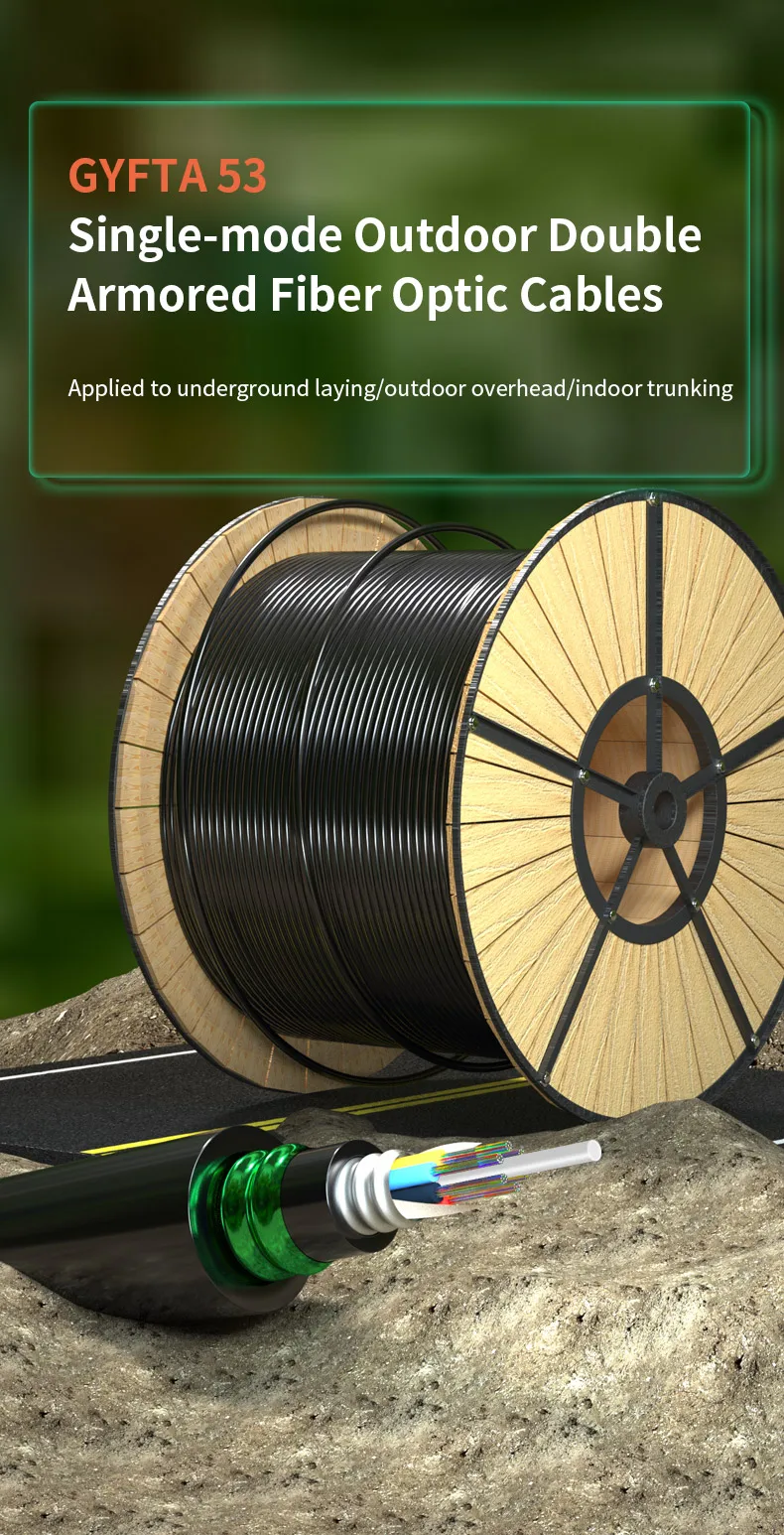

GYFTA53 SINGLE-MODE OUTDOOR DOUBLE ARMORED FIBER OPTIC CABLES
Applied to underground laying/outdoor overhead/indoor trunking
GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications

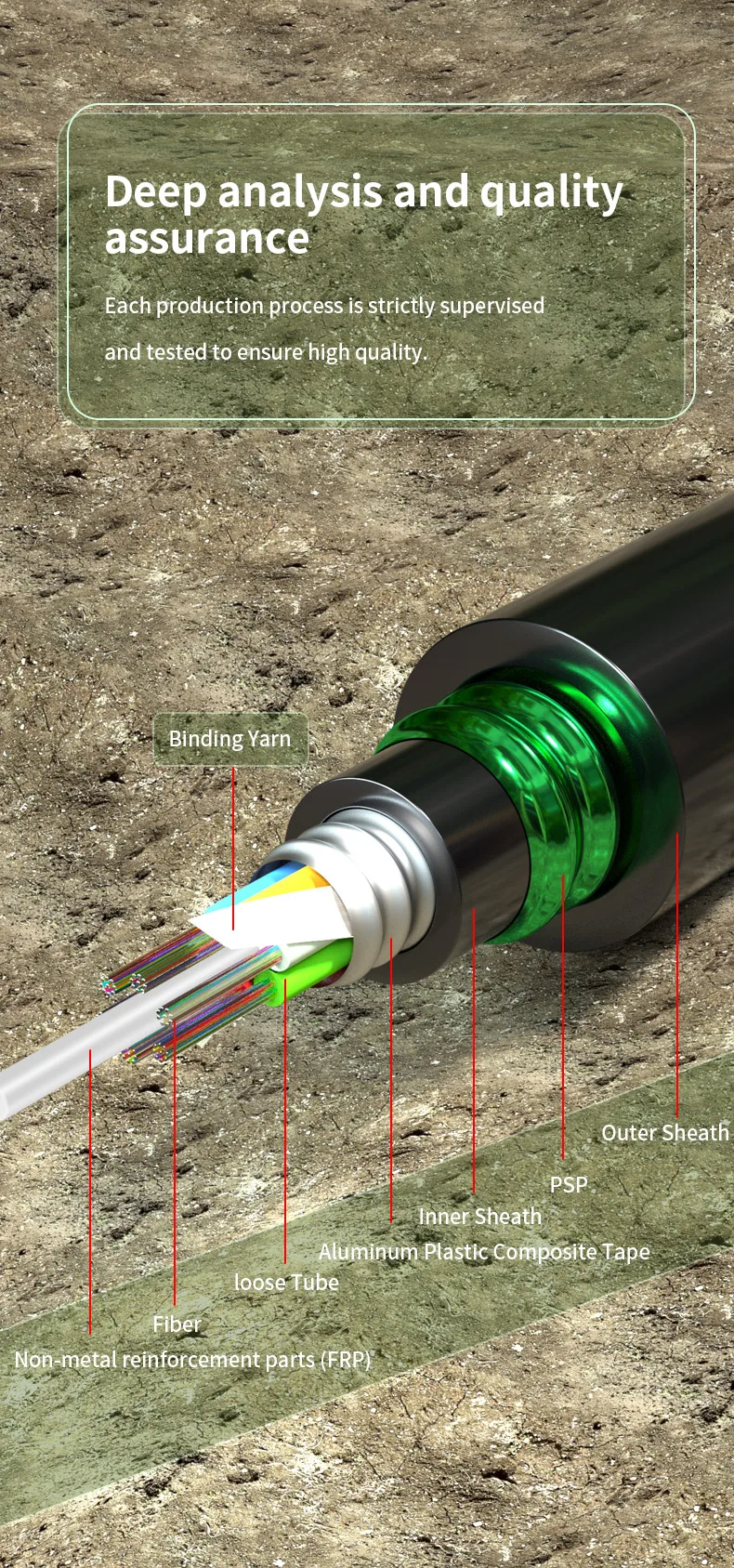

DEEP ANALYSIS AND QUALITY ASSURANCE
Each production process is strictly supervised and tested to ensure high quality
GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications

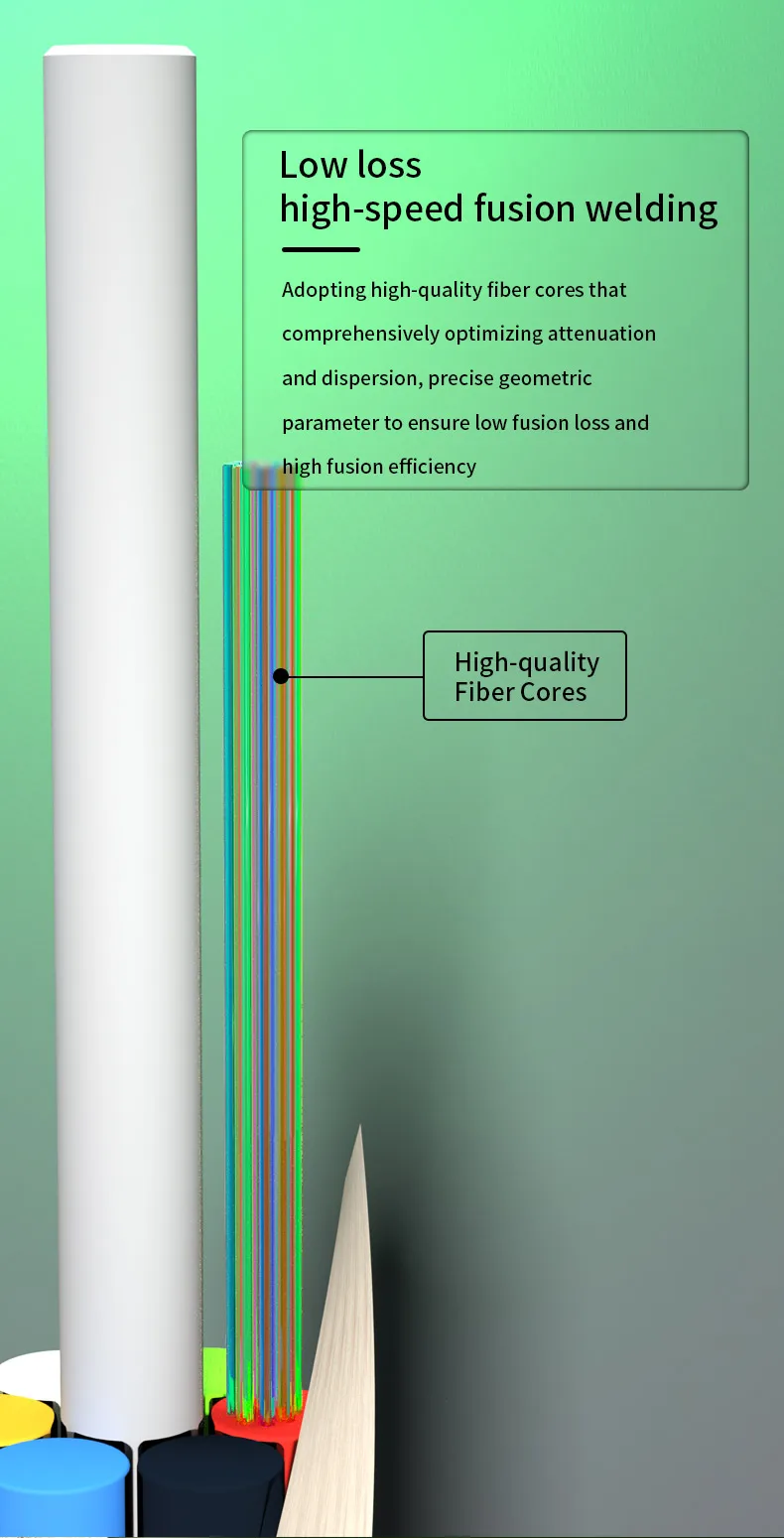

LOW LOSS,HIGH-SPEED FUSION WELDING
Adopting high-quality fiber cores that comprehensively optimizing attenuation and dispersion, precise geometric parameter to ensure low fusion loss and high fusion efficiency
GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications

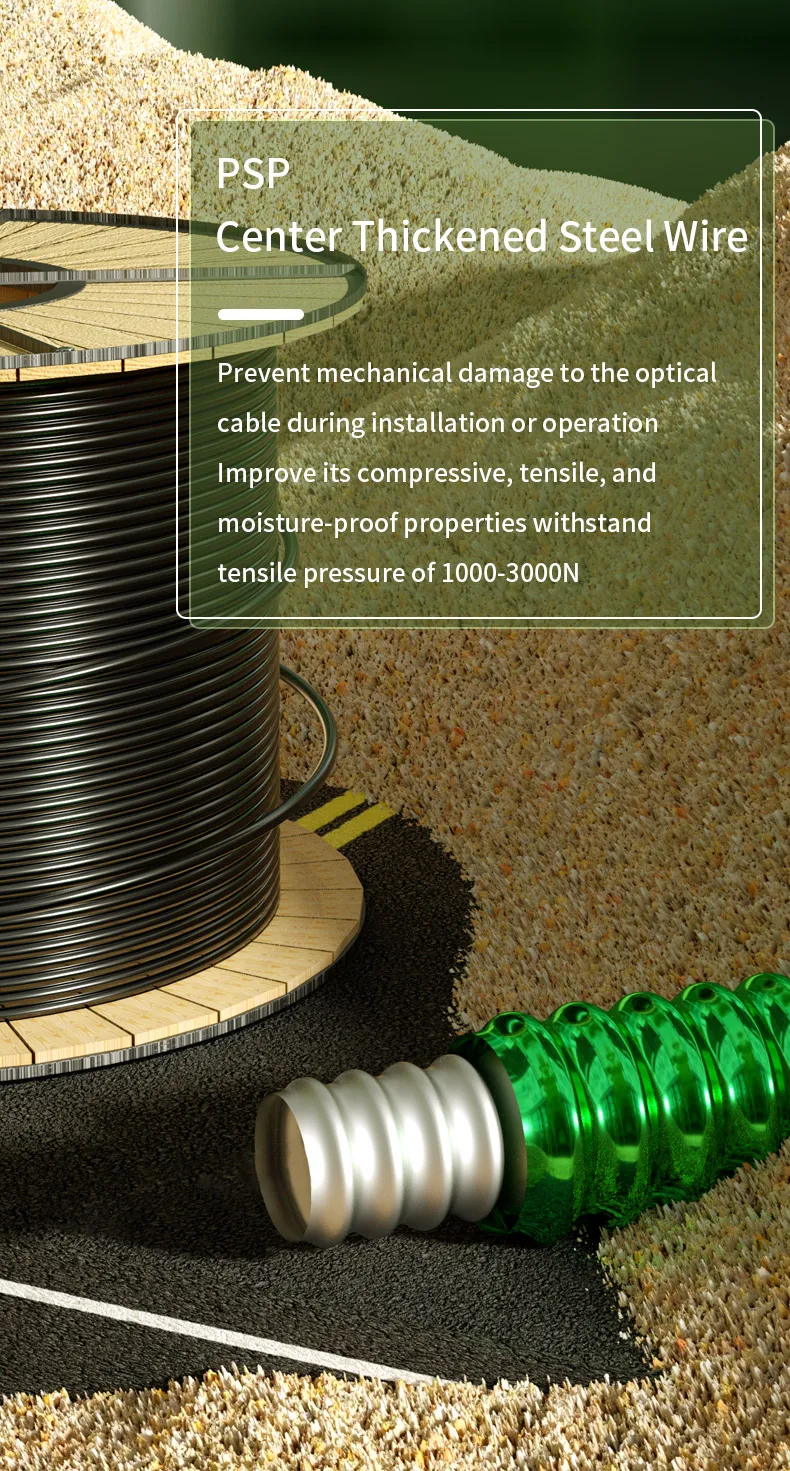

PSP
CENTER THICKENED STEEL WIRE
Prevent mechanical damage to the optical cable during installation or operation Improve its compressive, tensile, and moisture-proof properties withstand tensile pressure of 1000-3000N
GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications

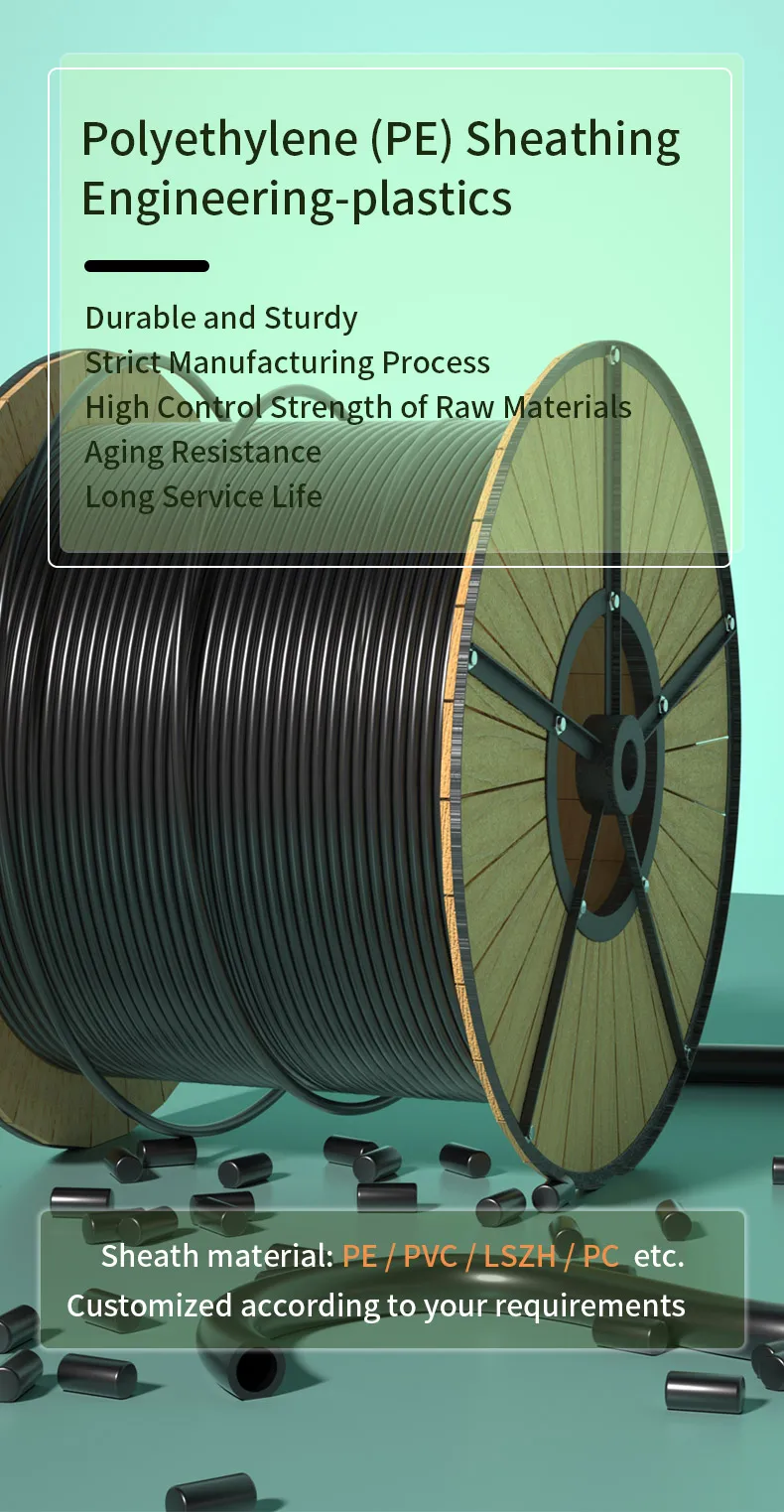

POLYETHYLENE(PE)SHEATHING ENGINEERING-PLASTICS
Durable and Sturdy Strict Manufacturing Process High Control Strength of Raw Materials Aging Resistance Long Service Life
Sheath material:PE/PVC/LSZH/PC etc. Customized according to your requirements
GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications

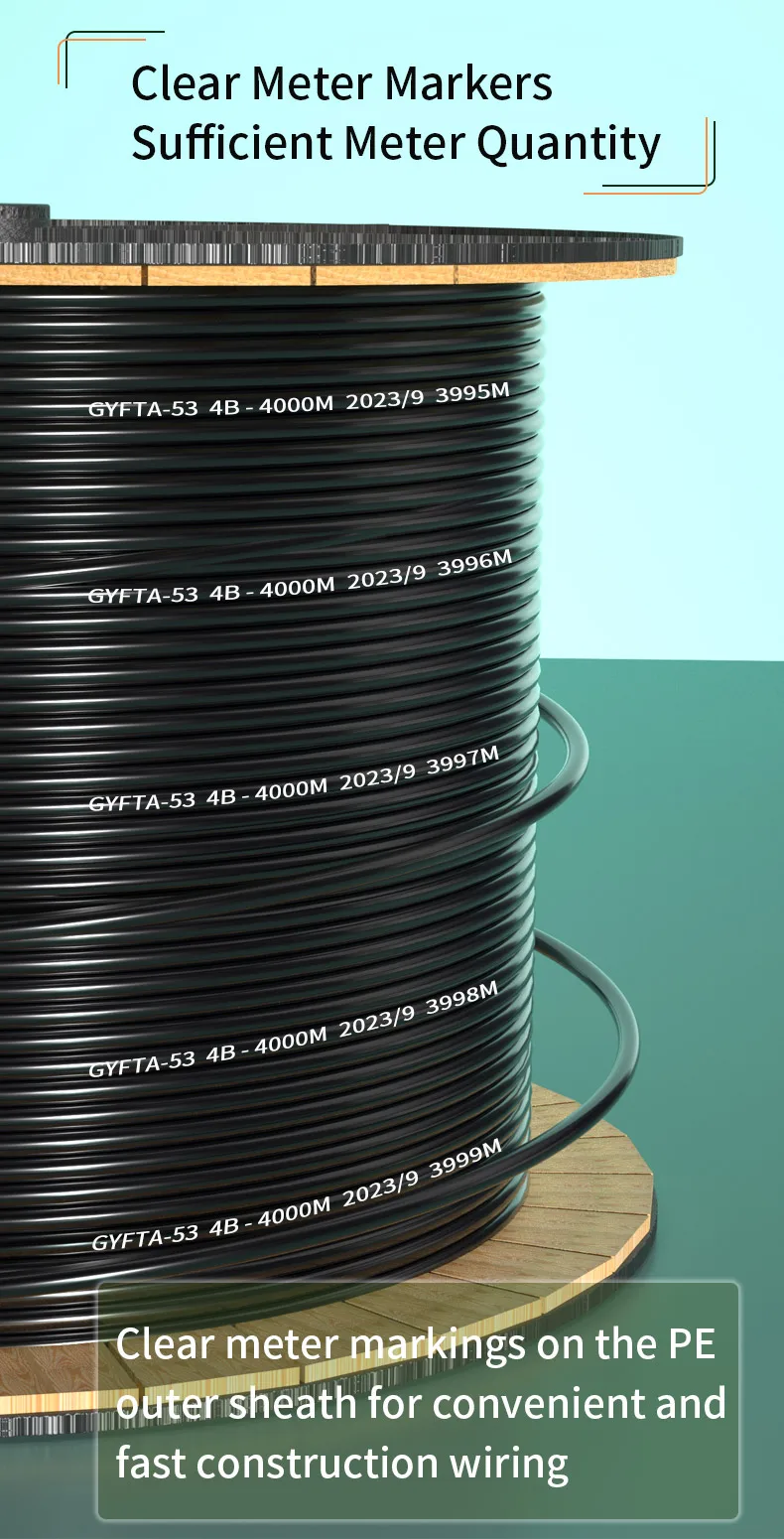

CLEAR METER MARKERS UFFICIENT METER QUANTITY
Clear meter markings on the PE outer sheath for convenient and fast construction wiring
GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications
GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications
GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications

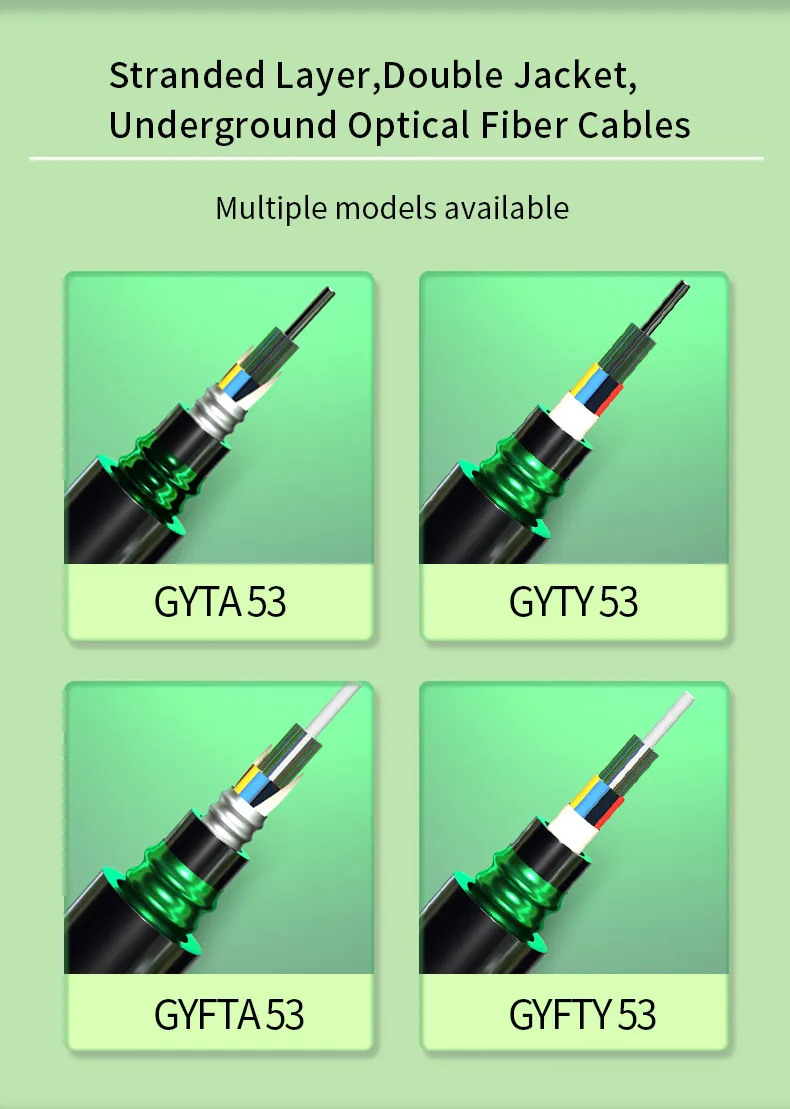

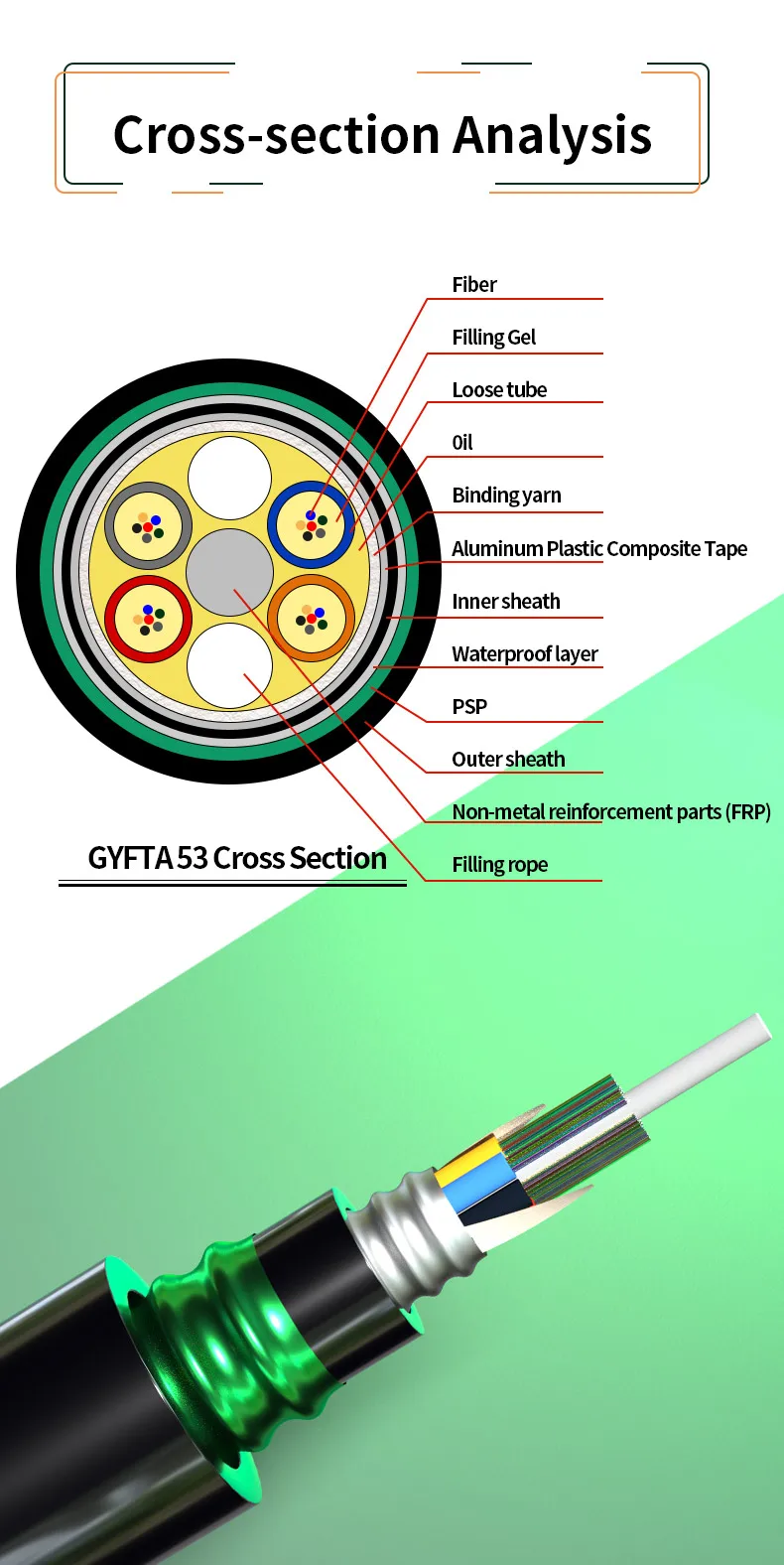

PRODUCT DESIGN
GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications
Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications

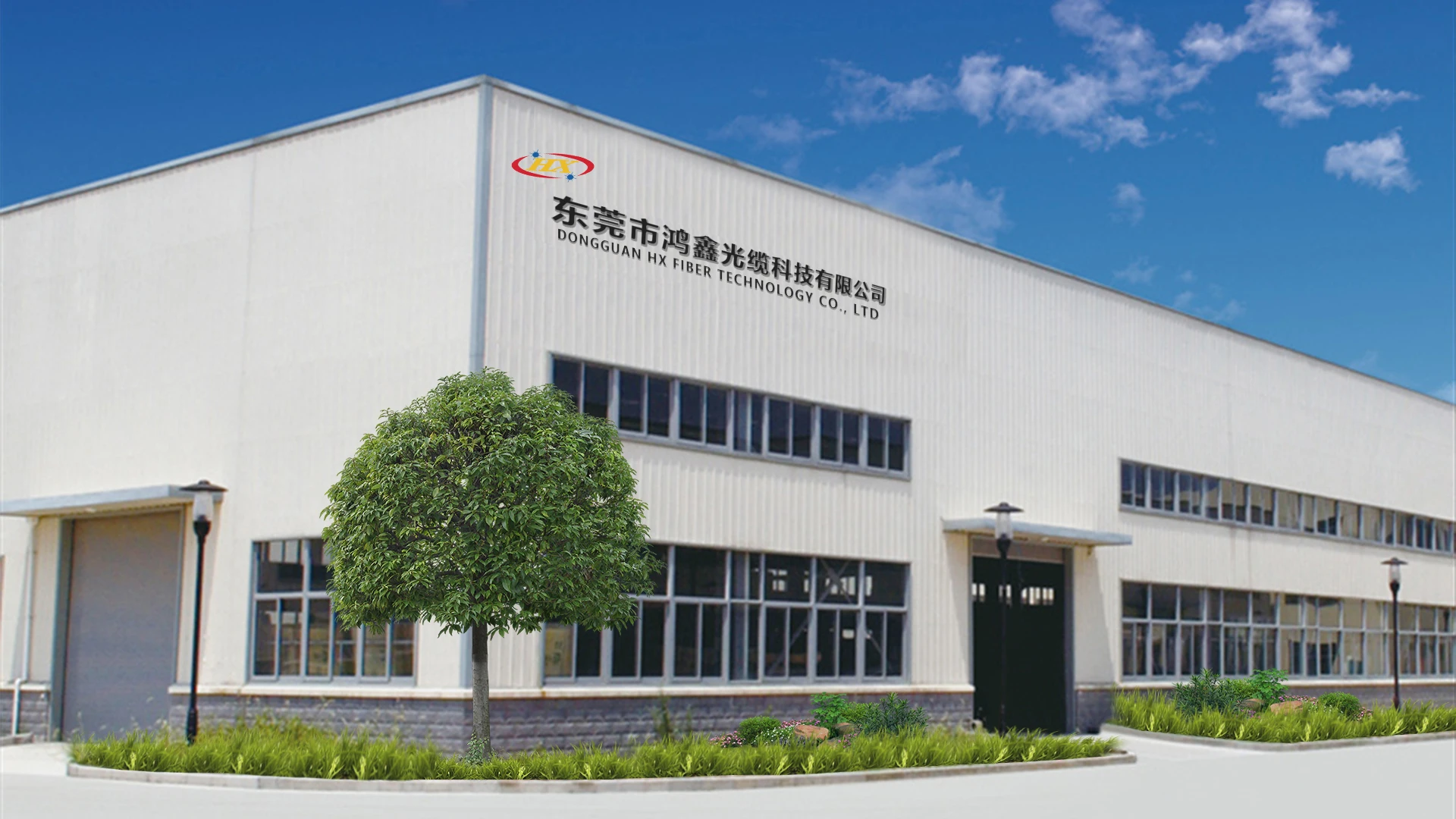

COMPANY PROFILE
GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications
Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables. With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !
SERVICE & PRODUCTION CAPACITY
GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications
FOREIGN EXHIBITIONS
GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications
COOPERATIVE BRAND & CERTIFICATION
GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications
PAYMENT & TRANSPORTATION METHOD
GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
